Cameras
Raspberry Pi HQ 12MP Camera Module Monochrome
SKU RaspPiHQ12MPMono
- Resolution
- 12 MP
- Spectral family
- Full Spectrum, Monochrome
MAXMAX / CATALOG
MAXMAX / CATALOG
Image 1 of 2 · Use arrow keys to browse
SKU RaspPi8MPMonoNoIRLSCatalog ID 16068
$569.25
USD · per unit
Availability on request
Confirm current pricing and availability before ordering.
Saved cart · Quotes and order drafts available. No payment is collected.

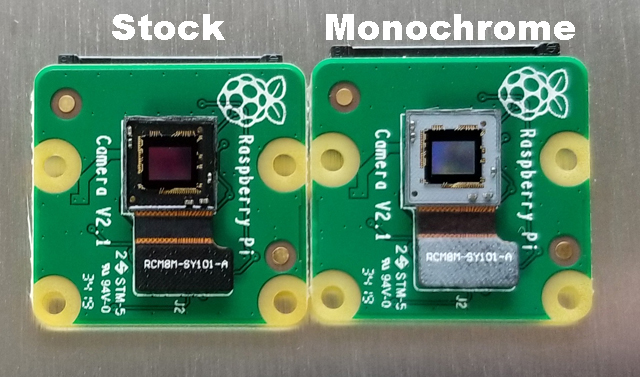

Raspberry Pi V2 8 Megapixel Monochrome Camera Module No IR Lens Sealed
No IR Cut Filter Version
Lens assembly fully sealed (versus tacked on for easy removal)
You can see more information on this camera by clicking here.
CMOS image sensor Sony IMX219
Image size : Diagonal 4.60mm (Type 1/4.0)
Total number of pixels : 3296(H) × 2512(V) approx. 8.28M pixels
Number of effective pixels : 3296(H) × 2480(V) approx. 8.17M pixels
Number of active pixels : 3280(H) × 2464(V) approx. 8.08M pixels
Chip size : 5.095mm (H) × 4.930mm (V) (w/ Scribe)
Unit cell size : 1.12?m (H) × 1.12?m (V)
Substrate material : Silicon
Recorded values and their sources are listed below. Confirm requirements against manufacturer documentation.
| Attribute | Value | Source |
|---|---|---|
| Resolution | 8 MP | Derived from legacy name / SKU / category |
| Spectral family | Full Spectrum, Monochrome | Derived from legacy name / SKU / category |
Recorded dimensions may include packaging.
