X-Nite 330nm Coated Filter in 25.5mm Diameter x 2mm Thick
SKU XNite330C25.5
- Filter diameter
- 25.5 mm
- Spectral family
- Ultraviolet
- Listed wavelength
- 330 nm

Image 1 of 2 · Use arrow keys to browse
SKU XNite33025.5Catalog ID 14975
$104.88
USD · per unit
Availability on request
Confirm current pricing and availability before ordering.
Saved cart · Quotes and order drafts available. No payment is collected.
330nm UV Pass Filter.

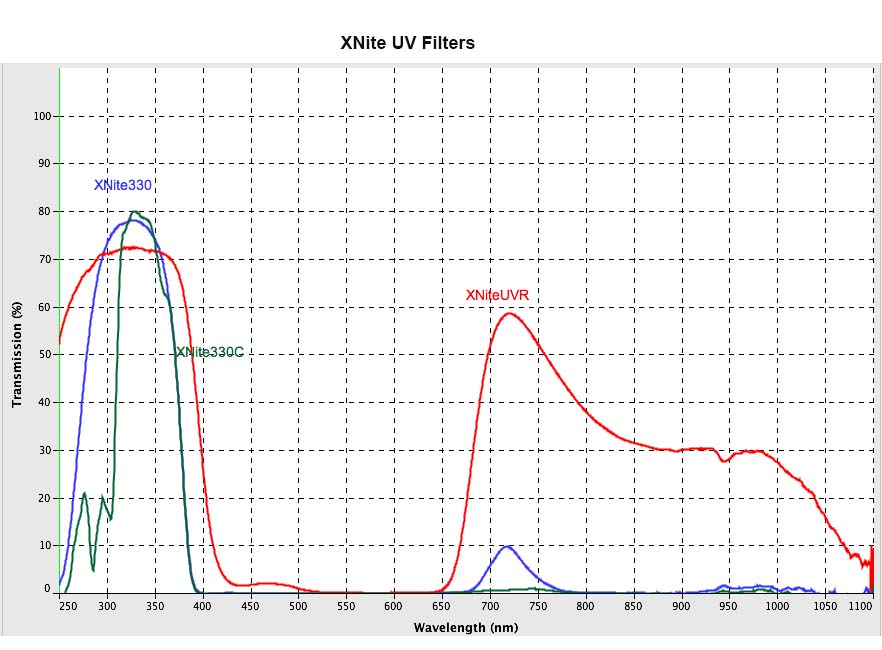

Please note: This filter has about a 10% IR transmission at 720nm. If you are using this filter with a modified camera in sunlight, the camera will see more IR than UV because cameras are very IR sensitive and not very UV sensitive. This filter would be good to use indoors with a UV LED light source. Other types of UV lights source often have IR emission as well.
For sunlight UV pictures, we recommend using our XNite330C filter + XNiteBP1 filter. The XNite330C filter has additional coating to block IR and the XNiteBP1 provides IR blocking as well. For UV pictures, a monochrome converted camera will see UV about 6x better than a color UV-VIS-IR sensor because the sensor microlenses and Color Filter Array (CFA) block most of the UV light. While you can use a typical camera lens for UV, using a special UV capable lens such as one from Jenoptik will work better.
Recorded values and their sources are listed below. Confirm requirements against manufacturer documentation.
| Attribute | Value | Source |
|---|---|---|
| Filter diameter | 25.5 mm | Derived from legacy name / SKU / category |
| Spectral family | Ultraviolet | Derived from legacy name / SKU / category |
| Listed wavelength | 330 nm | Product name; not a response curve |
Recorded dimensions may include packaging.
