Model

XNiteUSB8M-IR715

Sensor

SONY IMX179

Lens Size

1/3.2inch

Pixel Size

1.4um

image area

6.18mm x 5.85mm

Max. Resolution

3264(H) X 2448(V)  8Megapixel

Compression format

MJPEG  / YUV2（YUYV）

Resolution & frame

3264X2448 @ 15fps  / 2592X1944@ 20fps

2048X1536 @ 20fps  / 1600X1200@ 20fps

1280X960 @ 20fps  / 1024X768@ 30fps

800X600 @ 30fps   / 640X480@ 30fps

S/N Ratio

34dB

Dynamic Range

72.5dB

Sensitivity

0.65V/lux-sec@550nm

Mini illumination

0.5lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free Drive Protocol

USB Video Class（UVC）

OTG protocol

USB2.0 OTG

AEC

Support

AEB

Support

AGC

Support

Button camera

Support

Adjustable parameters

Brightness,  Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

Size:  1/3.2,  Iris:  F3.5,  Focus:  3.6mm ,  FOV:  75 Degree

LED board control interface

Support  2P-1.25mm socket

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Operating Voltage

DC5V

Working current

150mA~240mA

Working temperature

-10～70℃

Storage temperature

-20～85℃

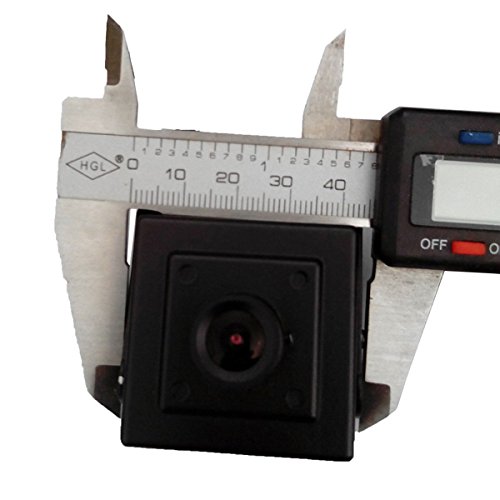

Board size

38X38mm（compatible 32X32mm）

Operating system request

WinXP/Vista/Win7/Win8/Win10

Linux with UVC（above linux-2.6.26）

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC
