This camera includes Windows drivers and software for viewing and capturing pictures.

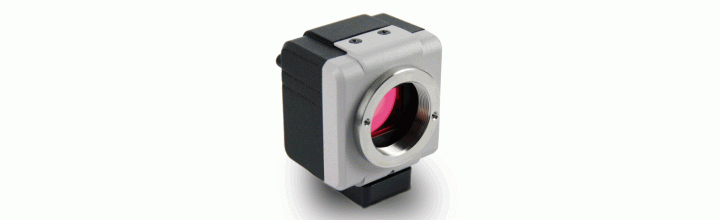

USB Industrial 5 Megapixel Camera with Monochrome Sensor and modified for UV-Only.

Note: The UV Shortpass filter is mounted inside the camera while the additional IR blocking filter XNiteBP1 is mounted on the lens.  If you remove the lens to install a different lens, you will need to add a the XNiteBP1 filter to that lens.

Note: For use in Sunlight, Hot Filament, Xenon Flash Tube or any light source that emits IR, you should use our XNiteBP1 filter on your lens for additional IR blocking.  Because the camera sensor is very IR sensitive and not very UV sensitive, without the XNiteBP1 filter, you will end up with a lot of IR in the image.

No Lens Included.

For outdoor use, you should also add our XNiteBP1 filter for additional IR blocking!



Pixels	5.0 MP Monochrome UV-Only
Sensor Size	5.7mm(H)x4.28mm(V)  1/2.5"
Pixel Size	2.2μm x 2.2μm
Resolution/ Frame Rate	2592 x 1944（full resolution）：6FPS
	2048 x 1536（ROI）：9FPS
	1920 x 1080（ROI）：13.4FPS
	1280 x 960（SUM）：15FPS
	1280 x 960（BIN）：15FPS
	640 x 480（SUM）：23.7FPS
	640 x 480（BIN）：23.7FPS
	Any Area（ROI）
Spectral Response	380nm ～ 650nm (with infrared filter) / 300nm - 1100nm no ICF
Exposure  Time	86μs ～ 3000ms
Sensitivity	1.4V/Lux-sec
Shutter	Electronic Rolling Shutter
Image Data Format	8bit RAW format
Operating Mode	Continuous output
Scanning Mode	Progressive Scan
Exposure Control	Manual / Auto / Area
White Balance	Manual / One-Time / Auto / Area
Image Processing	GAMMA / Contrast / Black Level / Noise Reduction / 3D Noise Reduction / Sharpness/ saturation
Picture Format	JPEG / BMP / PNG / RAW
Product ID	User Defined
Software Interface	DirectShow / TWAIN
Operating System	Windows XP(32 bit) / Windows7(32 bit/64 bit) / Windows8(32 bit/64 bit)

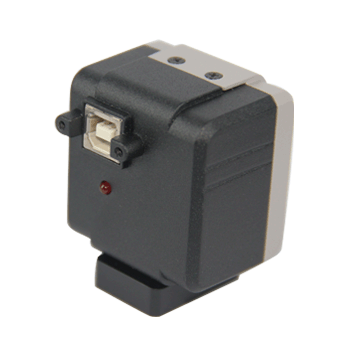

Data Interface	USB2.0 (B Type interface)
Lens Mount	C/CS Mount
Dimension	45mm x 48mm x 36.4mm（Exclude lens mount）
PCB Size	39mm x 39mm  （2 pcs board）
Weight	Approx. 112g （with case and fixed blocks）
Rotated Voltage	USB5V power supply（No external power supply circuit）
Rated power	＜ 1.5W
Temperature	operation ：0～50℃ / storage：-20℃～60℃
Humidity	Working ：10%～90%RH（No condensation） / Storage：10%～60%RH
LED Pilot Light	Lighting once plug/ flashing when working
