USB Industrial Monochrome 5.0 Megapixel Camera UV-Only
SKU USB-IND-5M-UV-Only
- Resolution
- 5 MP
- Spectral family
- Ultraviolet, Monochrome
MAXMAX / CATALOG
MAXMAX / CATALOG
Image 1 of 5 · Use arrow keys to browse
SKU XNiteUSB8M-MUVCatalog ID 15991
$835.00
USD · per unit
Availability on request
Confirm current pricing and availability before ordering.
Saved cart · Quotes and order drafts available. No payment is collected.

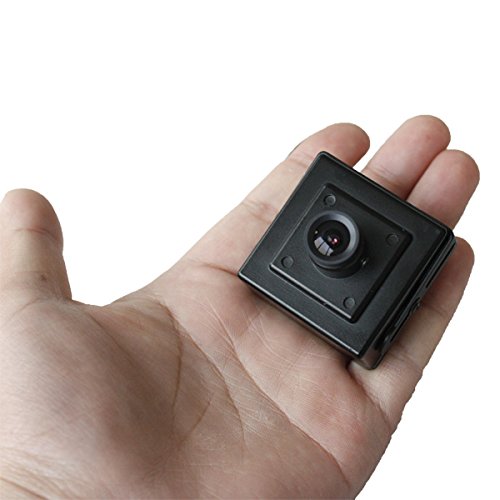

USB 2.0 8 Megapixel Camera converted to Monochrome UV-Only with an M12 Lens Mount
Note: The UV Shortpass filter is mounted on the outside of the lens. If you remove the lens to install a different lens, you will need to add a UV shortpass filter to that lens.
Note: For use in Sunlight, Hot Filament, Xenon Flash Tube or any light source that emits IR, you should use our XNiteBP1 filter on your lens for additional IR blocking. Because the camera sensor is very IR sensitive and not very UV sensitive, without the XNiteBP1 filter, you will end up with a lot of IR in the image.
|
Model |
XNiteUSB8M-MUV |
|
Sensor |
SONY IMX179 |
|
Lens Size |
1/3.2inch |
|
Pixel Size |
1.4um |
|
image area |
6.18mm x 5.85mm |
|
Max. Resolution |
3264(H) X 2448(V) 8Megapixel |
|
Compression format |
MJPEG / YUV2（YUYV） |
|
Resolution & frame |
3264X2448 @ 15fps / 2592X1944@ 20fps 2048X1536 @ 20fps / 1600X1200@ 20fps 1280X960 @ 20fps / 1024X768@ 30fps 800X600 @ 30fps / 640X480@ 30fps |
|
S/N Ratio |
34dB |
|
Dynamic Range |
72.5dB |
|
Sensitivity |
0.65V/lux-sec@550nm |
|
Mini illumination |
0.5lux |
|
Shutter Type |
Electronic rolling shutter / Frame exposure |
|
Connecting Port type |
USB2.0 High Speed |
|
Free Drive Protocol |
USB Video Class（UVC） |
|
OTG protocol |
USB2.0 OTG |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Button camera |
Support |
|
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
|
Lens Parameter |
Size: 1/3.2, Iris: F3.5, Focus: 3.6mm , FOV: 75 Degree |
|
LED board control interface |
Support 2P-1.25mm socket |
|
LED board power connector |
Support 2P-2.0mm socket |
|
Power supply |
USB BUS POWER 4P-2.0mm socket |
|
Operating Voltage |
DC5V |
|
Working current |
150mA~240mA |
|
Working temperature |
-10～70℃ |
|
Storage temperature |
-20～85℃ |
|

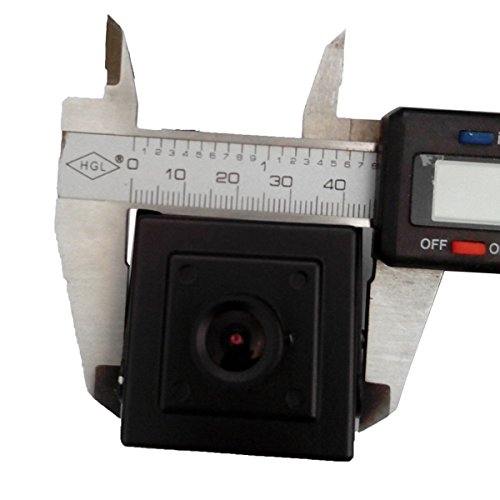

Board size |
38X38mm（compatible 32X32mm） |
|
Operating system request |
WinXP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
Recorded values and their sources are listed below. Confirm requirements against manufacturer documentation.
| Attribute | Value | Source |
|---|---|---|
| Resolution | 8 MP | Derived from legacy name / SKU / category |
| Spectral family | Ultraviolet, Monochrome | Derived from legacy name / SKU / category |
Recorded dimensions may include packaging.
